Сделано в Китае Forklift Paper Roll Зажим для продажи

Главная / Все вложения / Сделано в Китае Forklift Paper Roll Зажим для продажи

Сделано в Китае Forklift Paper Roll Зажим для продажи

характеристики продукта

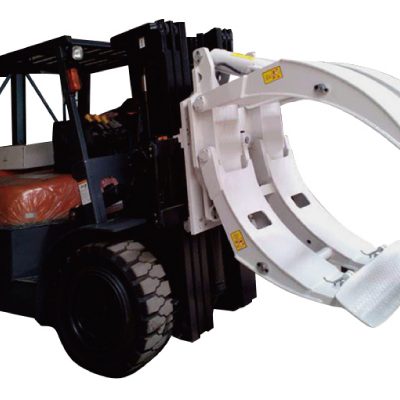

Electric Battery Forklift Truck with Paper Roll Clamp
Forklift Paper Roll Clamp for Sale

Economically and efficiently clamp and overturn any type of paper roll, roll film, wood, and the round bar, cables, cable rope, non-woven fabrics, yarn, cloth roll, coating cloth and other circular objects.
Paper roll clamp forklift is designed with optimized clamp arm and thinner pad to avoid damage while knifing in between rolls in containers, trailers and rail cars. Excellent visibility through the arms and frame allow for maximum productivity and minimum roll damage.

1. Novel structure and excellent driver visibility
2. Ultra thin clamp pad
3. Fixed or adjustable short arm
4. Fast arm speed
5. Durable heavy-duty revolving gear with ball bearing

Order number1.080011.080021.080031.080041.  1.080051.080061.08007
Arm typeSolid long arm
Производительность (кг)2200205019502800255024502150
Adjustable Roll range(mm)200-1400200-1525200-1600200-1400200-1525200-1600200-1830
Long arm length(mm)95310131047953100510981230
Short arm length(mm)623685723624695739845
VCG(mm)362362362429429430431
ET (мм)228228228195195195195
HCG(mm)294322328267283285326
Weight(Kg)617638650733761778849

Advantage


High quality material with compact structure.
Heavy duty design with highquality, small weight and dimension make it smart.
High-capacity battery, long-lasting and robust.
Safe and reliable operation.

Видео


Быстрые Детали


Состояние: Новый
Место происхождения: Фуцзянь, Китай (материк)
Фирменное наименование: HUAMAI
Тип: Приведенная в действие тележка с поддоном
Источник питания: двигатель переменного тока
Rated Loading Capacity: 2200Kgs
Максимум. Высота подъема: 3000 мм
Min. Lifting Height: 10mm
Длина вилки: 1070 мм
Ширина вилки: 122мм
Overall Dimensions: 2600*1100*2150mm
Certification: ISO9001,CE and SGS
Product Item: Forklift Paper Roll Clamp for Sale
Power Form: Battery
Load Capacity: 2.2ton
Reach Distance: 550mm
Rising Height: 3000mm
Powered electric forklift Fork Size: 1070*122*35mm
Certifications: ISO9001,CE and SGS
